Parking Space Guidance with LED Indicators and Availability Displays

Parking Space Guidance in an Underground Garage

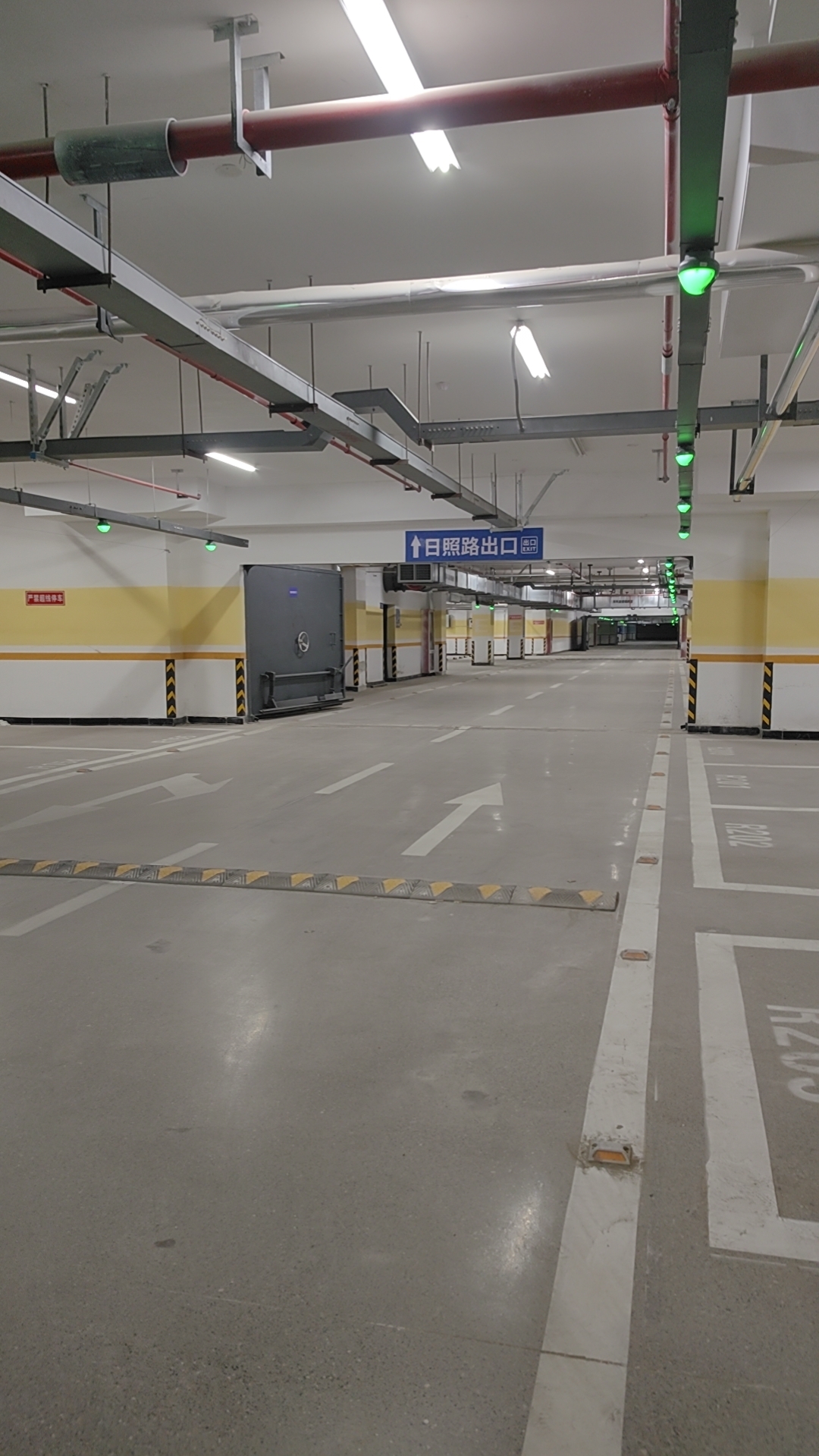

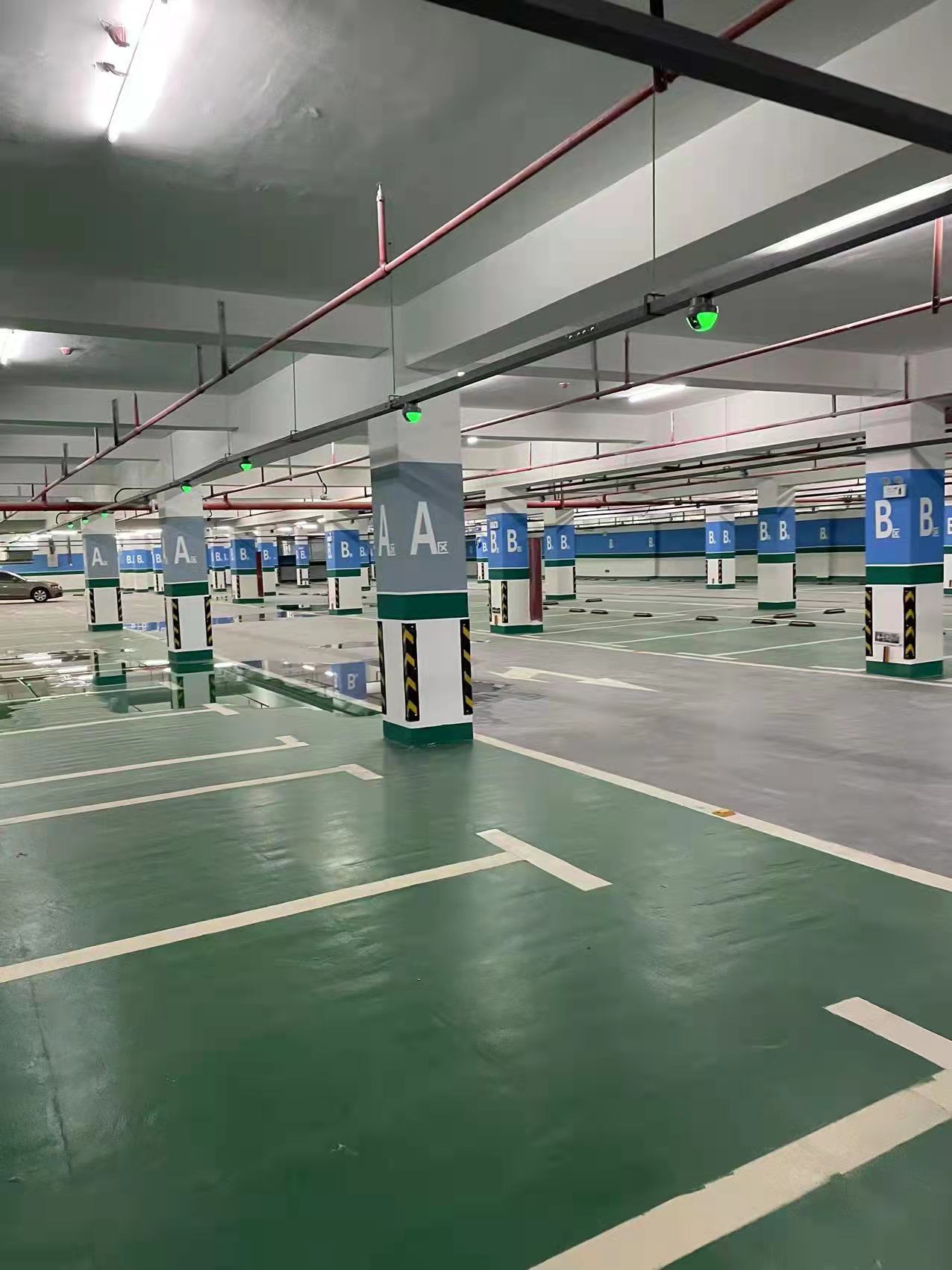

The photographs below show an underground parking garage equipped with overhead green parking space indicators and a directional display showing available spaces. Marked lanes and zone labels help drivers orient themselves within the garage.

Indicators, Directional Displays and a Parking Map

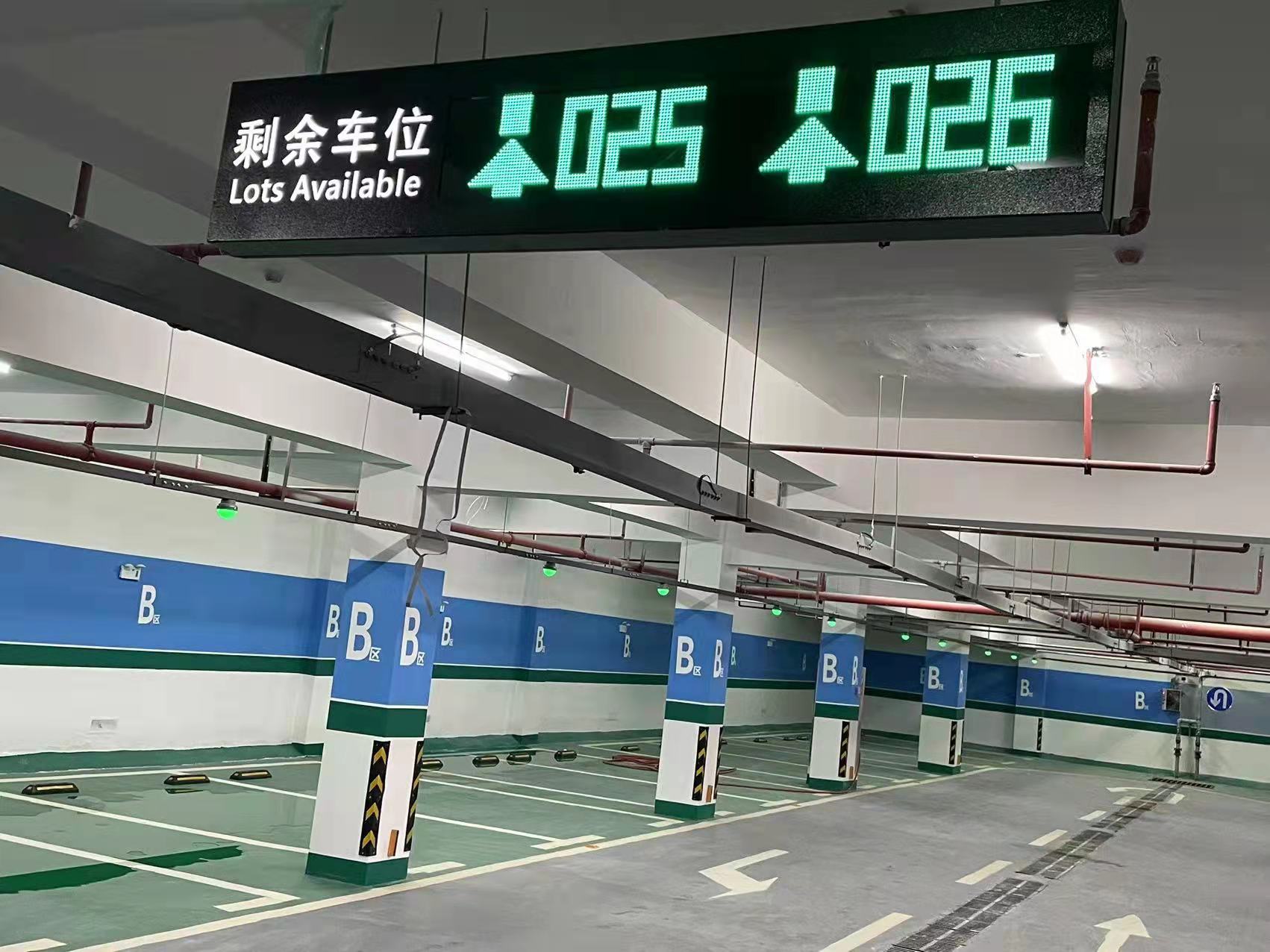

Individual overhead indicators provide a visual cue above the parking area, while the directional display presents available-space counts for two directions. The final image shows a parking management interface with a floor plan and occupancy legend.

The photographs bring together the installed guidance equipment and the software view. The available-space counts shown on the directional display reflect the moment when the photograph was taken.
